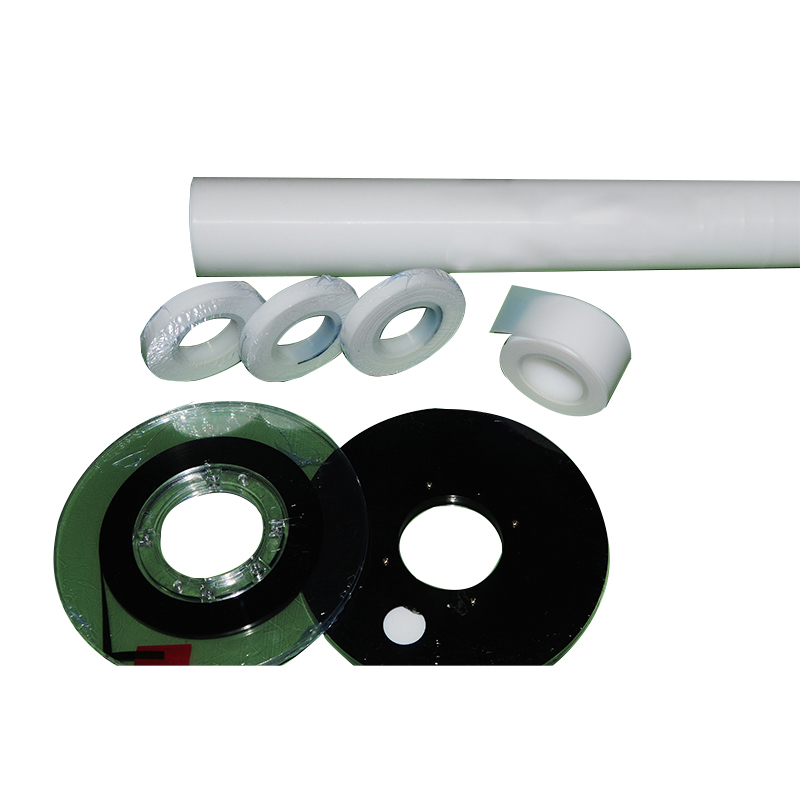

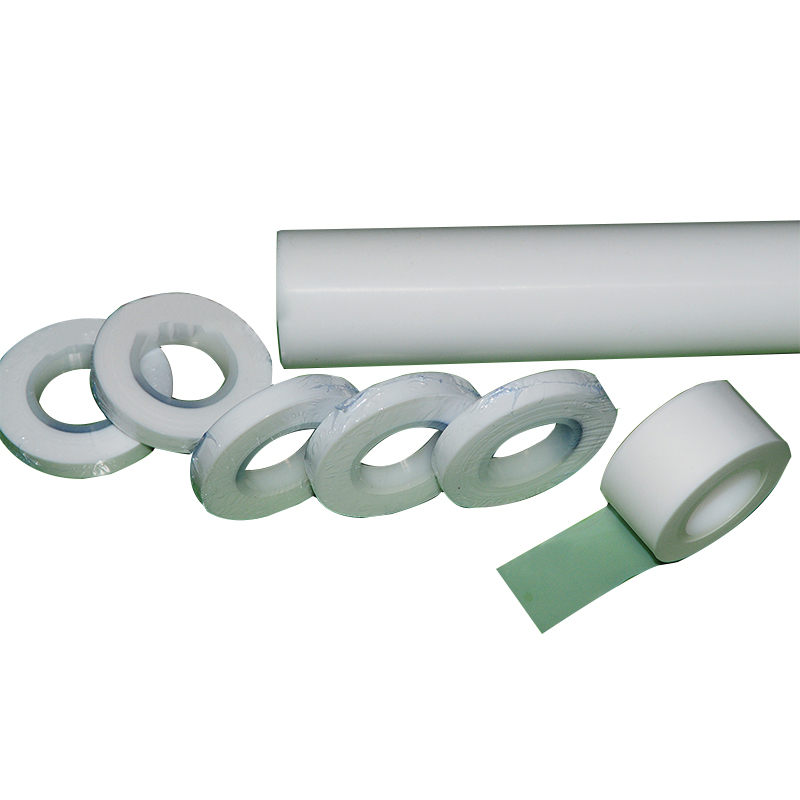

PTFE Film

GF-TF
Scraping thickness range: 0.025mm~0.5mmT Width: 4mm~1500mm Length: 10~1000 meters
Self-release film, self-lubricating film
Excellent low temperature and high temperature resistance -100℃~260℃
Low friction loss
Resistant to chemical corrosion
Electrical properties such as breakdown voltage, high insulation resistance, low dielectric loss
Good physical and mechanical properties
Good fire resistance

Consult

Features Technical Indicators Overall Dimension

Teflon is the full name of polytetrafluoroethylene, referred to as PTFE, with a molecular formula of -[CF2=CF2]-n. It is a perfluorinated crystalline thermoplastic plastic with a white resin color. It has excellent high and low temperature resistance, low friction and wear, chemical corrosion resistance, high electrical strength, non-stick, weather resistance and other properties and good physical and mechanical properties. It is widely used in various industries. Teflon film is used in the electronics industry, especially in the flat panel display industry, as a consumable material, such as TFT LCD, COG, SMT, PDP and other processing and production processes. Its mechanism of action is that when the ACF-Bonding hot press machine uses heat and pressure to stick the driver IC to the glass, the Teflon film can play a role in high temperature resistance and impact resistance, preventing glass breakage caused by PCB step difference and particles.

Properties	Unit	Typical Value		Test Method
Density	g/cc	2.16		ASTM D792
Hardness	Shore A	57		ASTM D2240
Point of fusion	℃	332		DSC
Thermal Conductivity	10-4 cal/cm sec ℃	7.5		ASTM D 177
Break Down Voltage	Kv/mm	96		ASTM D149
Surface Resistivity	Q/sq	10^¹⁴‌~		ASTM D 257
Tensile Strength	Kgf/Cm²	MD	205	ASTMD 1457
		CD	350
Elongation At break	%	MD	152	ASTM D 1457
		CD	360
Color	一	White		Visual
